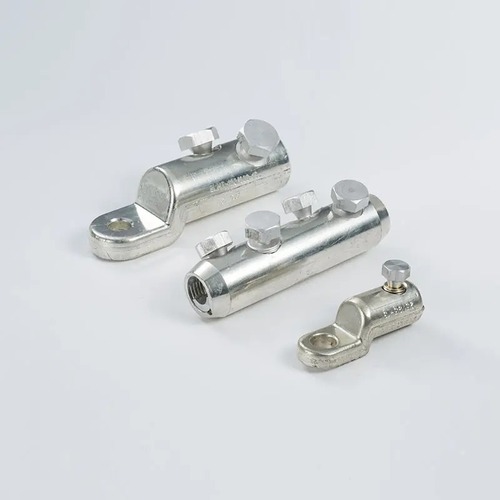

Mechanical Cable Lugs

95 INR/Number

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mechanical Cable Lugs Price And Quantity

Minimum Order Quantity 200 Number
Price 95 INR/Number

Mechanical Cable Lugs Trade Information

Supply Ability 10000 Number Per Month
Delivery Time 2 Week
Main Domestic Market All India

Product Description

Mechanical cable lugs also known as mechanical connectors or mechanical compression lugs are specialized electrical components used for creating secure and reliable connections between cables and electrical equipment or terminals Here are some key aspects of mechanical cable lugs

1 Function The primary function of mechanical cable lugs is to establish a strong durable and lowresistance electrical connection between cables and various electrical components such as switches circuit breakers busbars or distribution boards

2 Design Mechanical cable lugs are typically constructed from materials such as copper or aluminum chosen for their high electrical conductivity They feature a barrel or socket where the stripped end of a cable is inserted The lug is then mechanically compressed or crimped onto the conductor using specialized tools

3 Compression Technology Unlike traditional soldering or brazing methods mechanical cable lugs utilize compression technology to secure the cable to the lug This method ensures a reliable electrical connection and eliminates the risk of overheating or damage to the cable insulation that can occur with other methods

4 Types There are various types of mechanical cable lugs designed to accommodate different cable sizes and types copper or aluminum conductors They may also come in variants suitable for specific applications such as highvibration environments or corrosive conditions

5 Installation Installing mechanical cable lugs involves several steps

Stripping the insulation from the end of the cable to expose the conductor

Inserting the exposed conductor into the lugs barrel or socket

Using a crimping tool or hydraulic press to compress the lug onto the conductor creating a tight and secure connection

6 Advantages Mechanical cable lugs offer several advantages

They provide a strong and reliable electrical connection

Installation is generally quicker compared to soldering or welding methods

They can be easily inspected for proper installation and connection quality

Mechanical compression does not require high temperatures reducing the risk of thermal damage to cables

7 Applications Mechanical cable lugs are widely used in various industries and applications including power generation and distribution industrial machinery renewable energy systems such as solar and wind farms transportation railways ships and telecommunications infrastructure

8 Standards Mechanical cable lugs must comply with relevant standards and specifications to ensure safety performance and compatibility with electrical systems Common standards include those set by organizations like UL Underwriters Laboratories IEC International Electrotechnical Commission and ANSI American National Standards Institute

In summary mechanical cable lugs are essential components in electrical installations where secure and reliable connections are crucial Their design and installation process ensure efficient electrical conductivity and durability making them suitable for a wide range of industrial and commercial applications
